The Process
Step 1
INSTALLATION OF REBAR ANCHORS

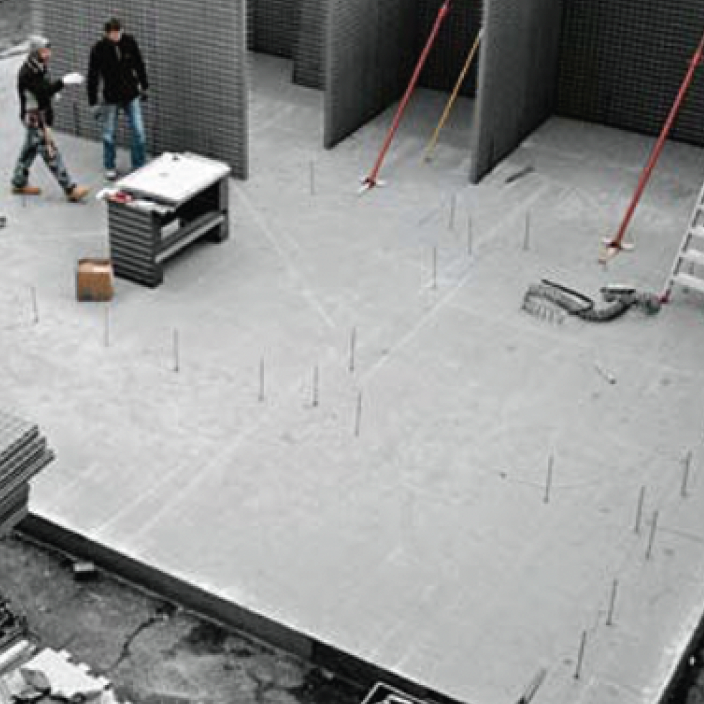

Anchor bars can be inserted before the pouring of the foundation or drilled into place after the foundation has solidified.

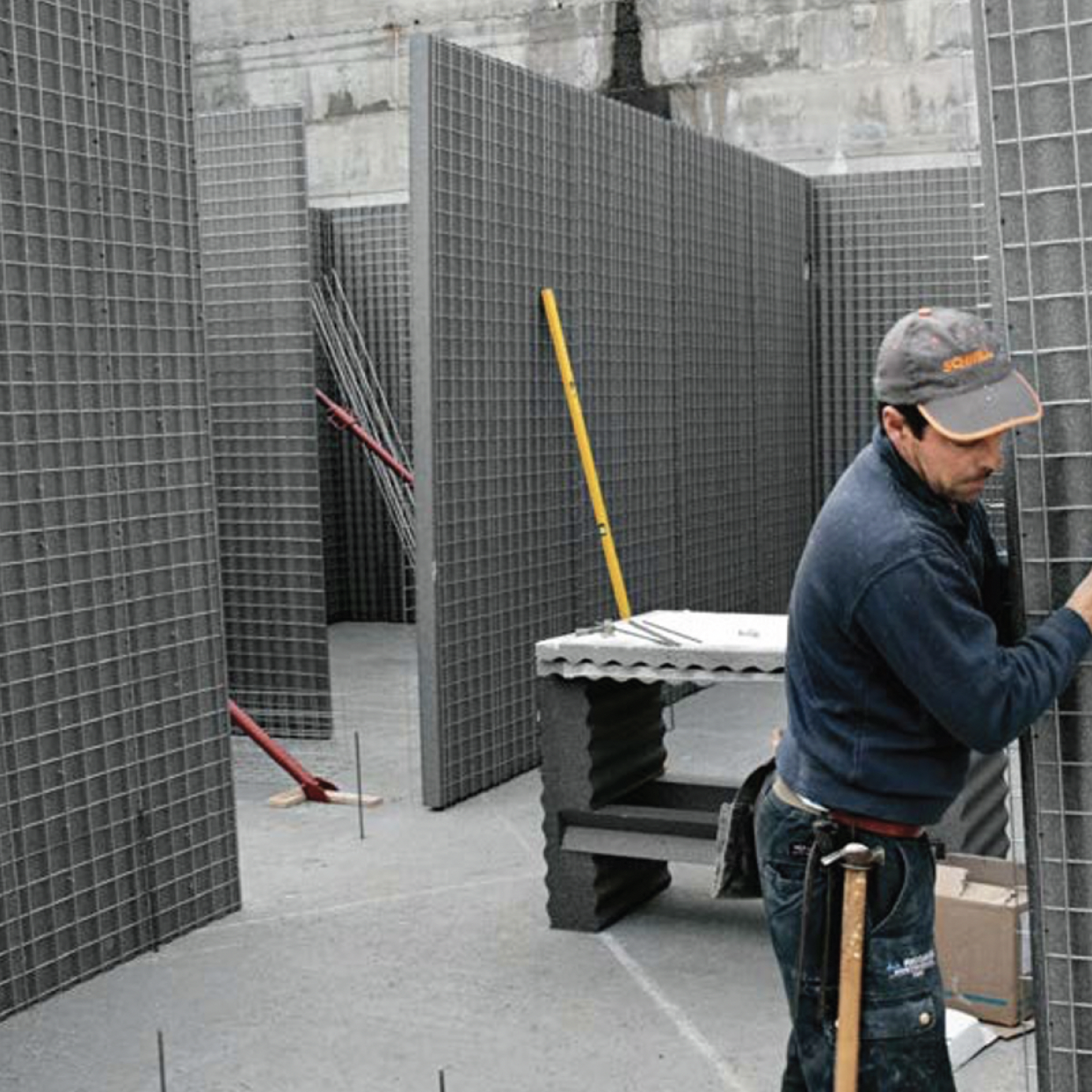

Thanks to their lightweight, a single operator can easily lift and place the panels where required.
Step 2
INSTALLATION OF PANEL
Step 3
POST INSTALLATION
Immediately after the placement of the panels, the perfect linearity and verticality of the walls is checked and ensured.

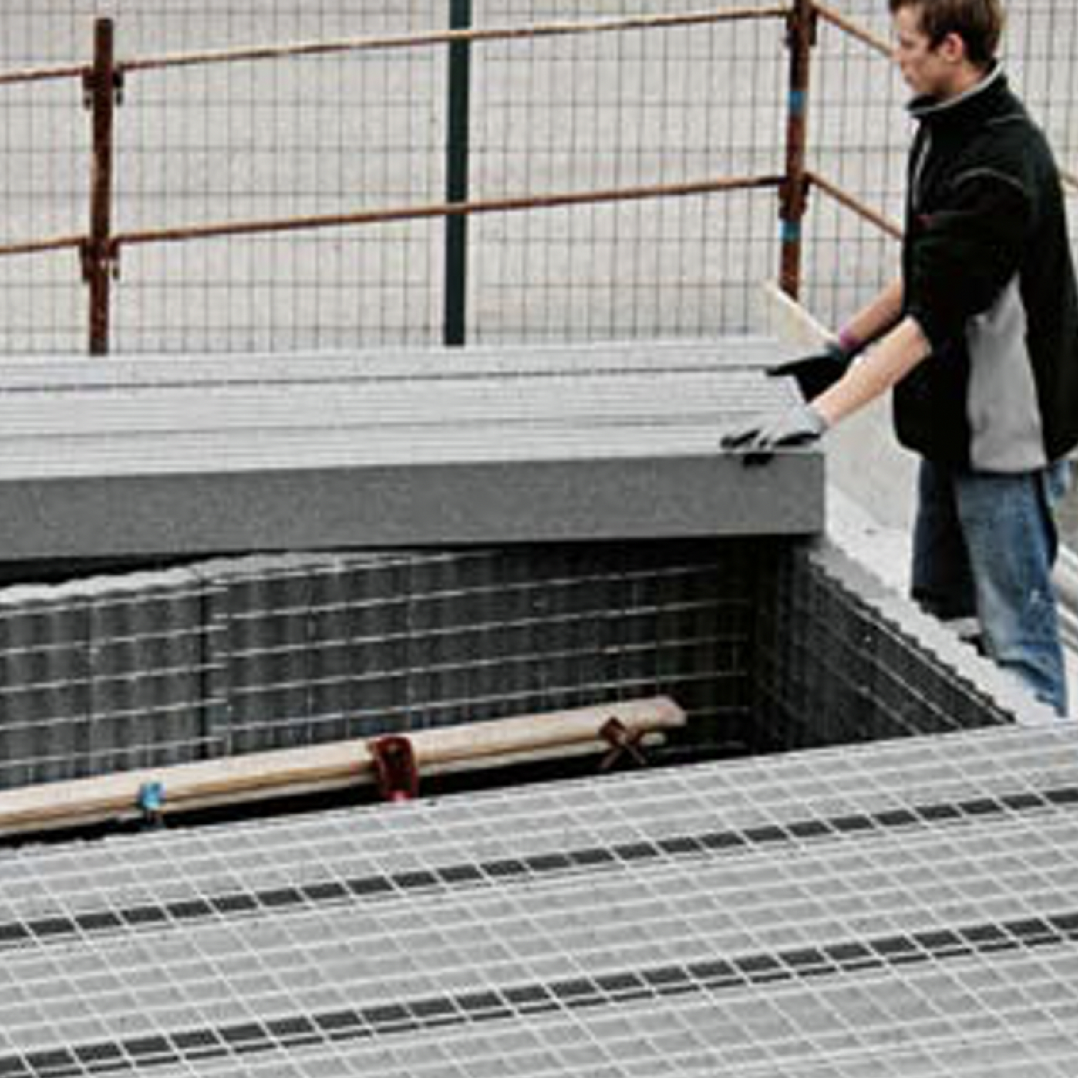

Once the floor panels are placed, supported by the walls and from below, any necessary additional steel reinforcement is installed and the concrete is poured.
Step 4
FLOOR PANEL INSTALLATION
Step 5
ELECTRICAL AND PLUMBING

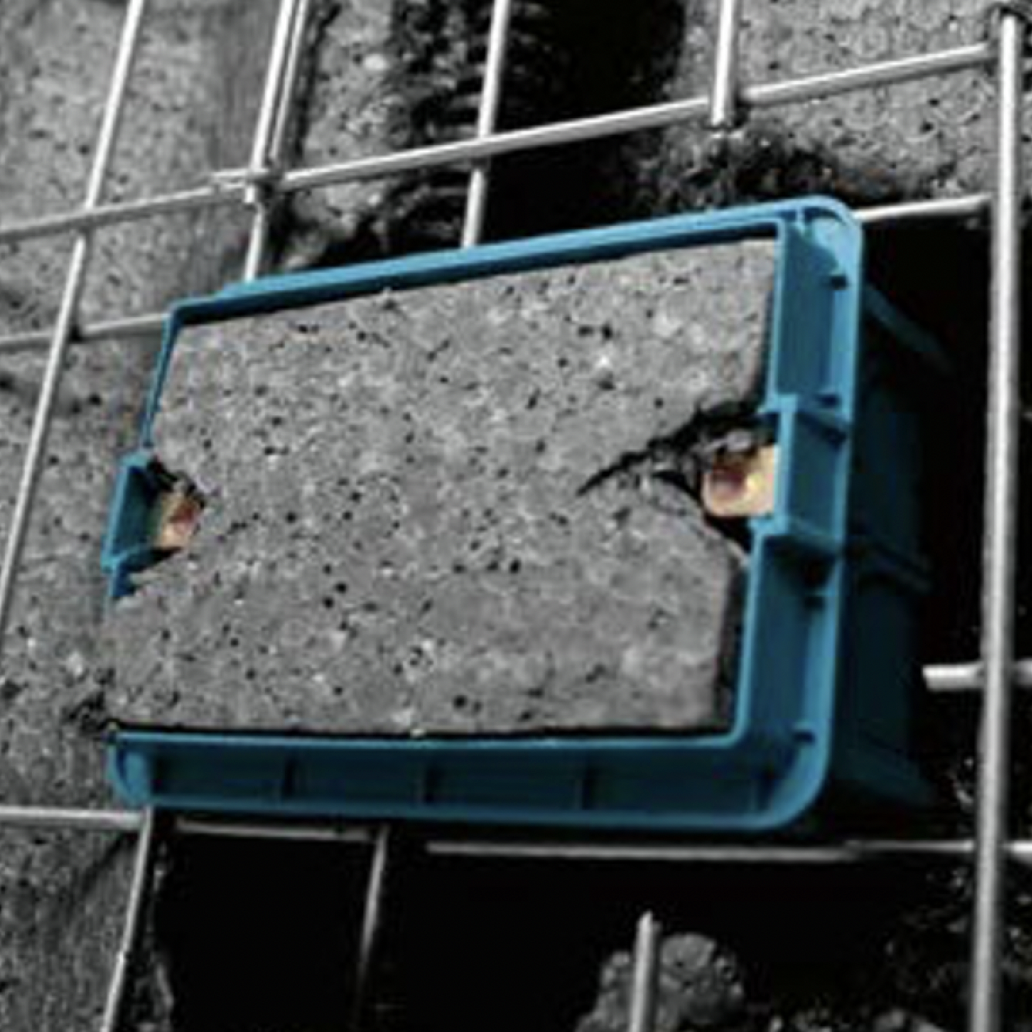

A hot-air gun or torch is used to create channels in the polystyrene for the placement of switch boxes, electrical conduits, cables, pipes, etc.

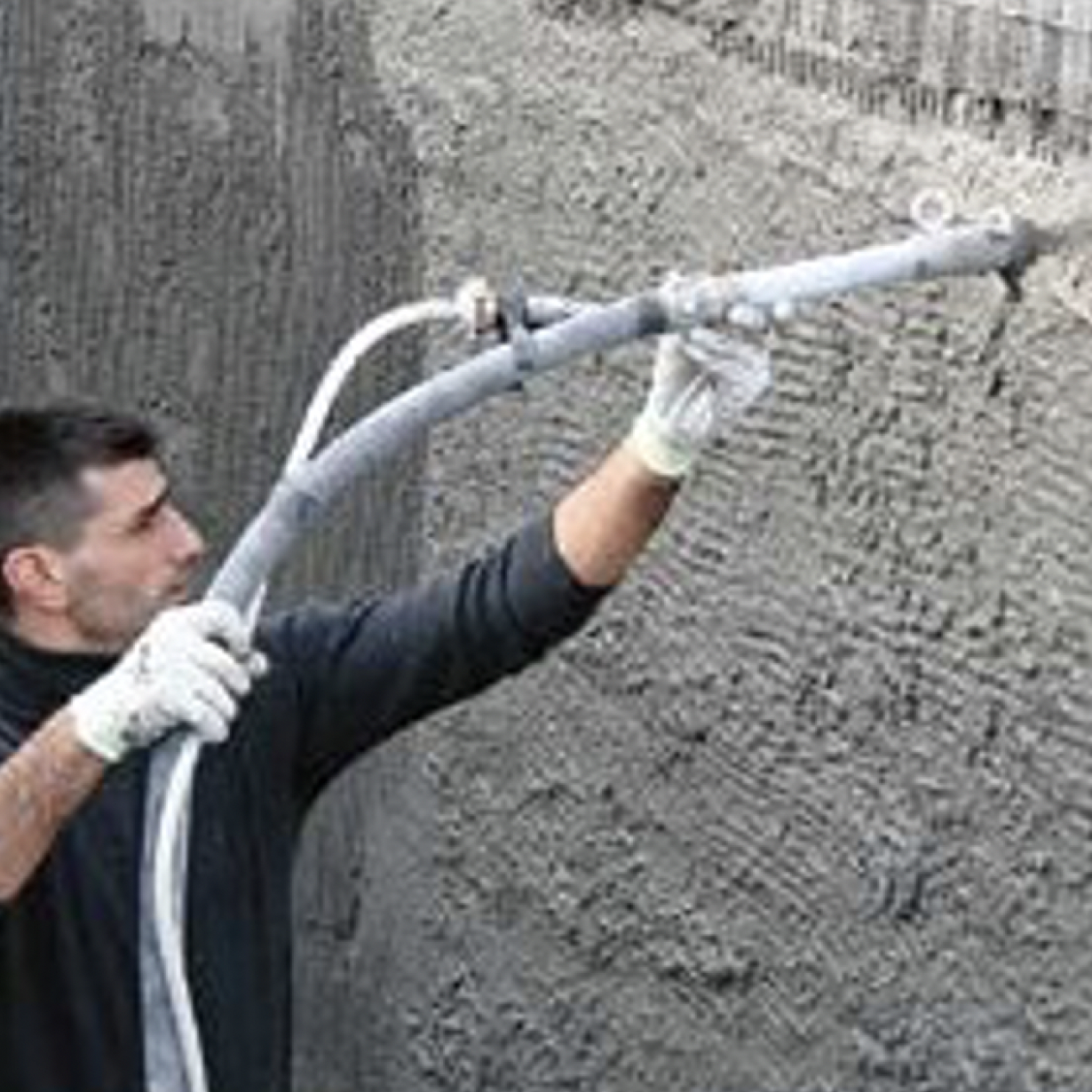

Both sides of the walls of the Single Panel are sprayed with shotcrete and subsequently finished with plaster.
Step 6
APPLICATION OF SHOTCRETE
Step 7
ADD FINISHES

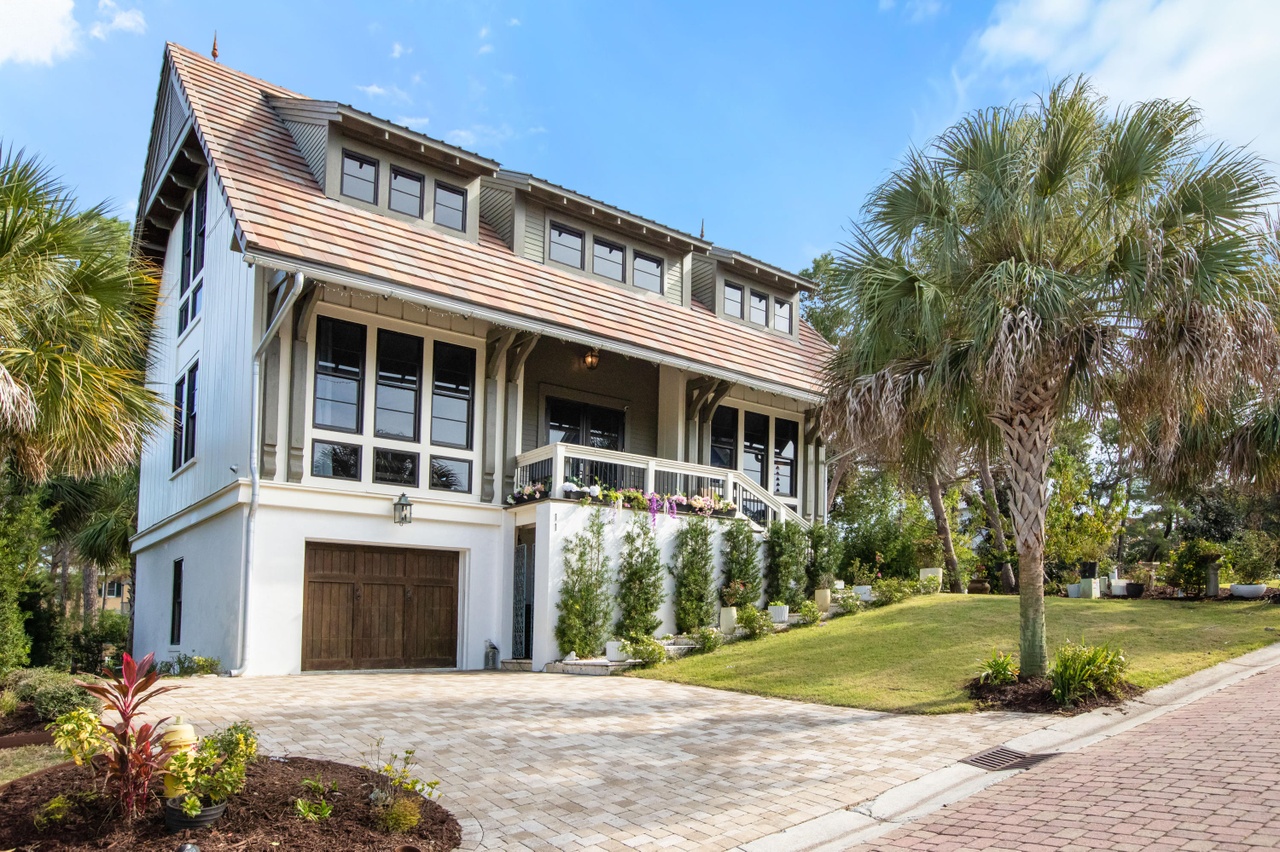

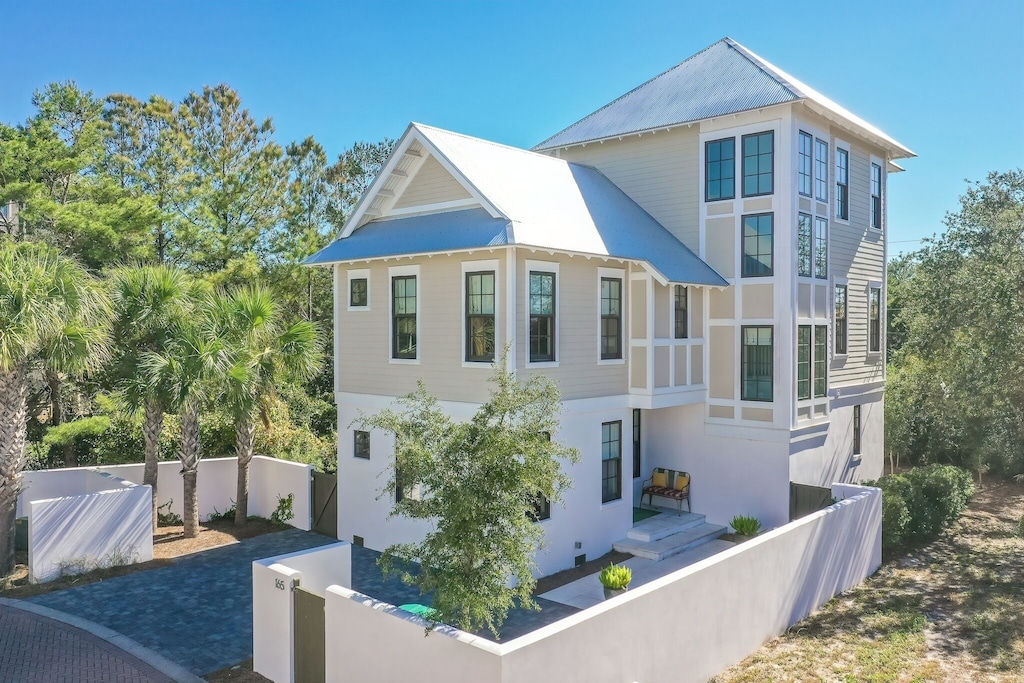

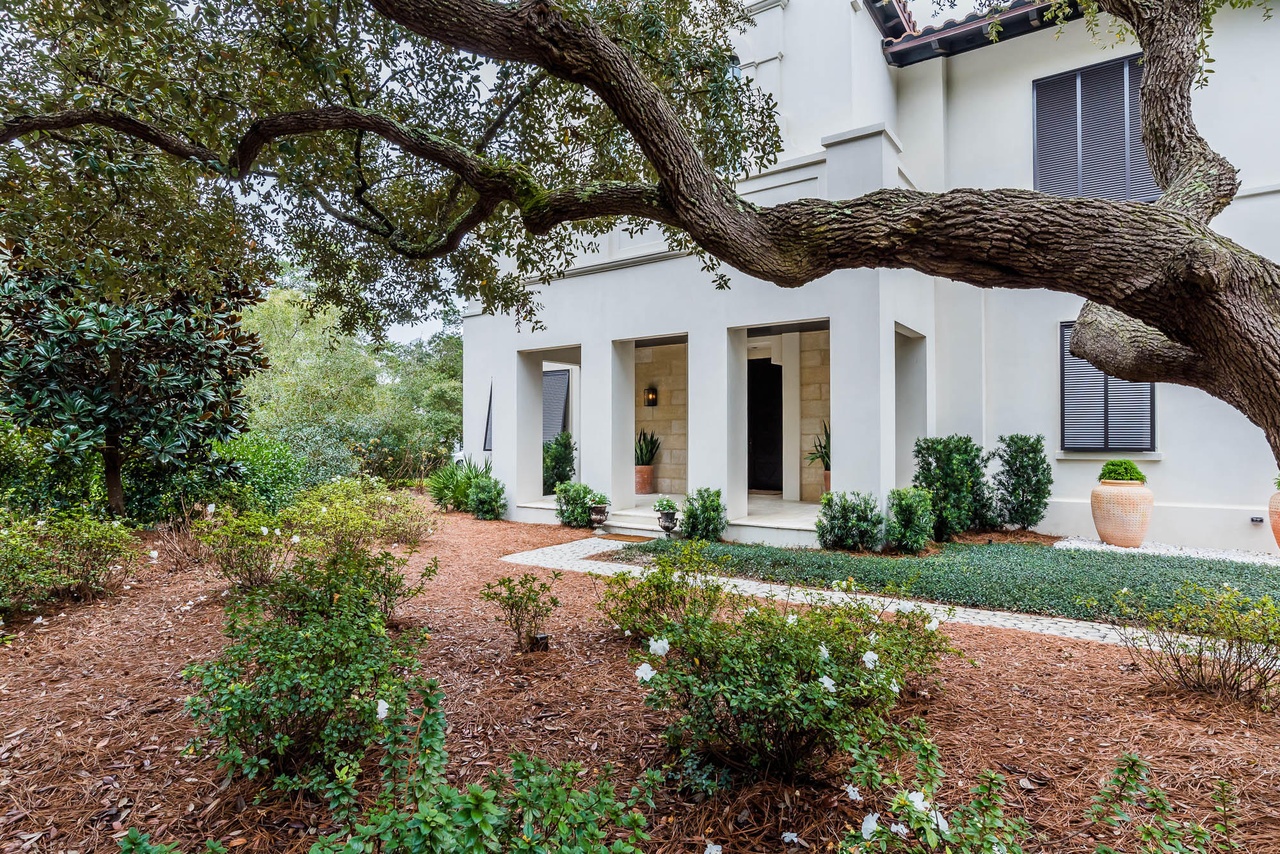

The finished product can look like many different styles. The versatility of the system allows for non-traditional designs incorporating more curves and larger overhangs.
